Due to the fact that it assists in the production of a considerable number of components, injection molding continues to be an essential procedure in a variety of industries. However, in order to establish whether or not the process is feasible, it is necessary to have a solid understanding of the dynamics of the costs associated with injection molding. This discussion examines the factors that determine the cost of injection molding, with a particular focus on the impact of the volume of production and the many methods that can be utilized to reduce costs. ”How much does an injection mold cost?” is a topic that is frequently asked, and this blog provides readers with the answer to that question by demonstrating the cost factors that play a big role in the project. Continue reading, then.
Considering the wide variety of parameters that are involved in the process of injection molding, it is hard to define a standard cost for the process. The process of custom plastic injection molding is an essential step in the development of prototypes; yet, it is relatively expensive for manufacturing small batches and can cost anywhere from a few thousand to several hundred thousand dollars. Several different things have contributed to the occurrence of these costs.
Not only is equipment a component of the production expenses, but it is also one of the most significant cost drivers in the manufacturing industry. Nevertheless, because molding equipment is considered a fixed cost, the machining of molds and mold bases is typically more expensive. This is because the mold design, the type of material that is utilized, and the production process all contribute to the overall cost.
Electrical discharge machining, also known as EDM, is an additional technique that is utilized in the process of producing injection molding molds that have detailed and fine details. In electrical discharge machining (EDM), the metal workpiece is heated with high-energy electric discharges, and then it is sintering to the desired mold shape. EDM is only applicable to molds made of metal, and despite its high level of accuracy, it may not be very successful for molds made of other materials.
Moreover, computer numerical control (CNC) machining is frequently utilized in the production of metal molds, particularly those made of steel or aluminum, as well as other materials that are relevant to this field, such as engineered-grade plastics. Due to the fact that the mold is made by CNC cutting from a metal block, this approach is best suited for specific geometries and tolerances that are rather small.
Over the course of the past few years, 3D printing has been evaluated as a method that is both inexpensive and quick for the production of molds, particularly for plastic injection molding. Molds can be created by the process of 3D printing, which is sometimes referred to as additive manufacturing. This method involves the deposition of layers from a digital model. When compared to other traditional machining procedures, this method is less dependent on the technical expertise of the operator, which results in a reduction in the likelihood of incurring significant labor costs. On the other hand, there are a few constraints that must be taken into consideration, such as the dimensions of the build platform and the shrinkage of the printed molds.
It is vital to do a comparison in order to acquire the appropriate degree of quality of the mold and the price. This is because each of the processes has its own set of advantageous and disadvantageous characteristics.
Machines That Are Employed In The Art of Injection Molding
One of the most important aspects of the cost evaluation is moving on to the equipment that is utilized in the injection molding process. Injection molding machines can be classified into a large variety of categories, which are determined by factors such as size, level of automation, and cost. Let us have a look at the costs that are linked with the following categories of machines:
Moulding machines that include electric injection:
These gadgets make use of an electro-servo motor, which is not only more accurate but also more cost-effective and produces less energy consumption. On the other hand, in comparison to other types of bananas, they call for a significant amount of financial resource investment and ongoing upkeep.
Combination Injection Moulding Machines: Hybrid
Hybrid machines are machines that feature both electric and hydraulic components, such as servo motors and hydraulic pumps. These machines are referred to as hybrid machines. Despite the fact that they are more expensive and require more maintenance in the beginning stages, they have qualities that are superior in terms of precision, stability, and energy conservation.
Moulding machines that use hydraulic injection process:
The hydraulic pump is the most important component of hydraulic equipment, which is distinguished by its high level of dependability, stability of the rate of ejection and injection, and relatively modest initial investments. It is possible that they are not as accurate as electrical devices, and they often consume more power than traditional devices.
Considering that the machinery utilized in injection molding is both capital-intensive and requires frequent upkeep, a great number of businesses choose to outsource their injection molding services to private service providers. Because it eliminates the need for firms to purchase or maintain machines, this strategy is a cost-cutting measure that may be utilized by organizations that are looking to reduce their expenses.
The costs of resins that are often used, such as polycarbonate (PC), polyacrylonitrile (ABS), polyurethane (PU), polypropylene (PP), and polyethylene (PE), have a direct impact on the cost and are typically within the range of one to five dollars per kilogram. Nevertheless, the cost of the material is determined by the particulars of the product’s design and how it is utilized during the molding process.
The injection mold cost is affected by a number of different factors.
For injection-molded components, there are a number of different costs to consider:
- The complexity of the part: Molds that are manufactured using 3D printing, CNC, or EDM manufacturing systems are required to be used in the production of components that require complex geometries. As a result of the fact that they require more material and can take longer to make, these molds with complicated designs may be more expensive.
Part Size: The cost of the material used for injection molding is determined by the size of the part that is going to be manufactured. When compared to simpler designs, those that are larger and more sophisticated typically require a longer amount of time to manufacture.
- Undercuts: Mold manufacture and part injection are two areas that can be potentially affected by undercuts. For the purpose of reducing expenses, it is suggested that undercuts be avoided or that removable cutoffs be introduced into the mold-making process. Both of these options are being considered.
There is a possibility that the cost of injection molding will increase due to the incorporation of components that are not necessary required in the product. These factors include appearances and finishing. Additionally, the molds are expensive and complicated due to the utilization of texture, bead blasting, or high mold polish, all of which ought to be utilized in a limited capacity.
Additionally, labor and additional services are included in the costs of injection molding:
First, let’s take a quick look at how the cost of labor affects the overall expenses associated with the injection molding operation.
Injection molding is a procedure that involves a number of steps, each of which is related with machine settings. These settings are especially important during the technically demanding mold building process.
The costs of repairs are incurred because, just like any other piece of machinery, the injection molding equipment needs to be maintained and replaced. This is a cost that is incurred in the process of running the business.
Costs of the Operator: In order to ensure that the project is carried out to its full potential, operators make a contribution to the labor costs, which are one of the areas of expense.
Prices Vary According on the Amount of Product Produced
The cost of injection molding is determined by the quantity of units that are going to be manufactured. A number of different classes are used to categorize manufacturing volumes, and each class has its own set of costs.
Low-volume injection molding production includes the following:
It is possible to purchase components that can be manufactured in quantities ranging from one hundred to two thousand. Molds used in low-volume manufacturing are made with RT or 3D polymer resin, which is both more affordable and more efficient. To give an example, the cost of producing 100 to 1,000 pieces might range anywhere from $100 to $1,000 for the mold, and the cost of each chunk of raw material could be as low as $5.
In order to get the best possible outcomes, it is essential to have a comprehensive understanding of the specifics of injection molding costs, the various types of equipment, and the ways in which the volume of production influences the cost.
Productivity of Injection Molding with a Mid-Volume Material:
The manufacture of five thousand to ten thousand components is typically considered to be of a mid-volume production. Molds made of pre-hardened steel or aluminum are quite popular among manufacturers because to their cost-effectiveness and inherent strength. When faced with such a scenario, businesses could decide to employ more contractors in order to supply mold & molding services for the volume of production that is being produced.
Consider the following example of a production run consisting of 5,000–10,000 parts, with the following rough cost breakdown:
The mold prices range from $2,500 to $5,000.
The cost of raw materials, per unit, is $0.5
The cost of labor for each component: 2 dollars is a rough estimate.
£3 is the computed total cost per component.
Injection at High Volumes Molds Producer: Injection at High Volumes
High-volume manufacturing is used to produce a wide variety of products, which may involve anywhere from hundreds of thousands to millions of individual components. Despite the fact that steel molds are durable, the manufacture of enormous quantities of work necessitates the use of complex machinery, which drives up the cost of manufacturing. In spite of this, economies of scale result in the cost per component being significantly lower in high-volume production and significantly higher in low-volume manufacturing processes.
Consider, for example, a production run consisting of 100,000–300,000 parts, with the following distribution of expected costs:
Price range for mold: $25,000 to $75,000
At a cost of $0.5 per part, the raw materials are
The cost of labor for each component is one dollar
Approximately $1.75 is the total cost that was computed for each component.
There are significant cost benefits associated with mass production, and the source of these benefits is the economies of size in the injection molding costs per part.
Suggestions to Reduce the Costs of Injection Molding:
Due to this, it is essential to decrease the cost of injection molding in order to enhance the efficiency of production and make the most of the resources that are already available. The following is a discussion of some typical methods that can be used to reduce injection molding cost:
- Analysis of Design for Manufacturing (DFM): The application of technological and scientific factors to reduce the cost of injection molding, incorporating DfM analysis during the design process to produce components that are functional and reasonably priced within the budget that has been allotted
- Simplify Design Features It is possible to save fifty percent of the cost of injection molding by simplifying designs and getting rid of any components that are not necessary. To a greater extent than aesthetics, concentrate on useful aspects.
- Take into consideration universal molds: when it comes to producing high-quality parts, standard molds are more cost-effective than other methods. Therefore, they are ideal in situations where the use of specialized molds is not required. The use of CAD models as a tool for mold design prior to manufacturing is not only more cost-effective but also more efficient.

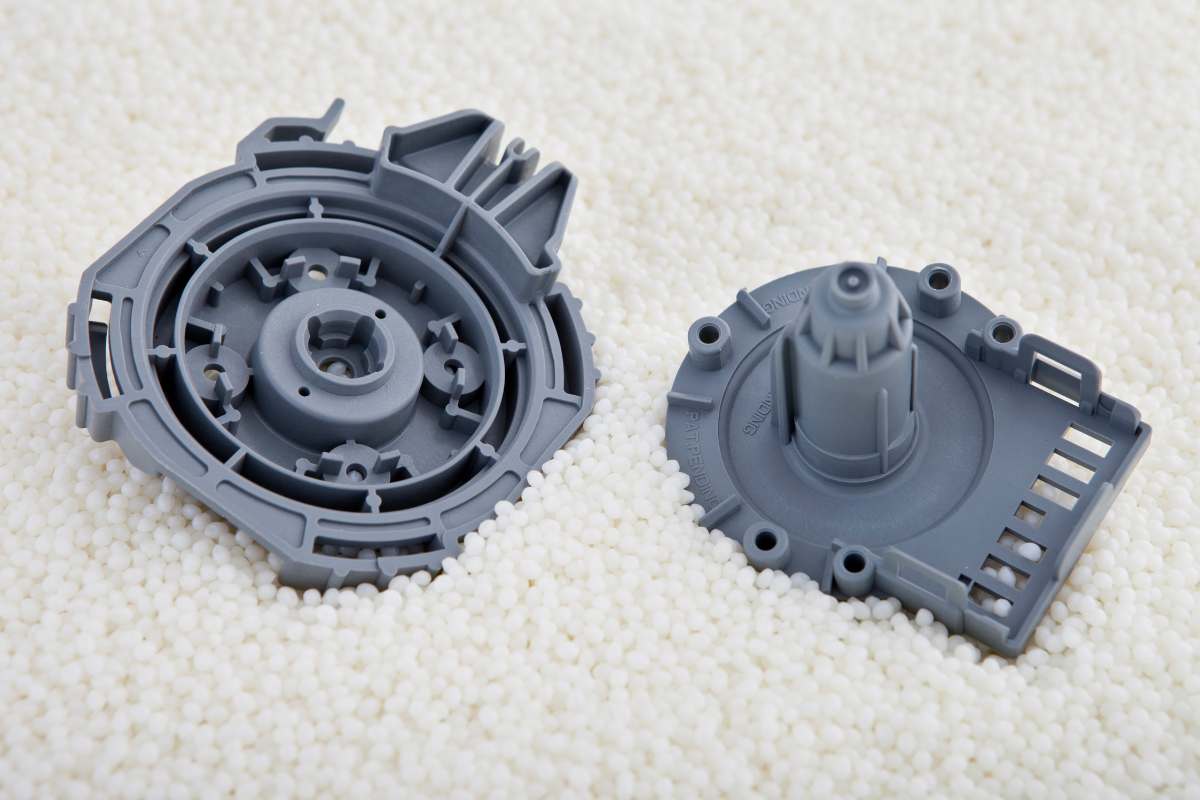

- Choose Materials That Are Economical Choosing the appropriate material, such as polypropylene or ABS, can significantly reduce the expenses of injection molding without compromising the quality of the completed product. Ascertain that the materials are of a good quality, while at the same time ensuring that the solutions are not excessively expensive.
- Investigate Insert Moulding: If you want to save money in the long run, it is recommended that you investigate insert molding and overmolding techniques. Insert molding, for example, is a cost-effective method because it eliminates the requirement for plastic threading associated with metal components.
- Decrease the Number of Mould Cavities In order to save money on mold expenditures, you should have fewer cavities in the molds. Make use of moldflow analysis to ascertain the locations of cavities that can be eliminated without compromising the functioning or look of the component.
In the event that these strategies are successfully adopted and the costs associated with injection molding techniques are greatly decreased, the manufacturing line has the potential to become more efficient overall.
Sincere Tech is a provider of effective tooling solutions that is rapidly expanding throughout the industry
Sincere Tech is one of the top 10 mold manufacturers in China that offer custom plastic mold manufacturing services ranging from low to high volume injection molding. While Sincere Tech specializes in injection-molded components, machining services, and the design of custom molds, they also offer other services.
Sincere Tech provides just-in-time manufacturing services, as well as large resources, in addition to providing reasonable prices and free DFM tests performed by competent engineers. Simply uploading your CAD design file is all that is required to acquire the most effective injection molding solutions at a price that is quite reasonable.
As a result of the widespread application of the injection molding manufacturing process across a variety of industries, it is essential to have a solid understanding of the costs involved and how they are estimated. It has been discussed in this article that the cost considerations of injection molding as well as the strategies that can be utilized to lower production costs with the assistance of a skilled tooling partner such as Sincere Tech have been discussed. If you are interested in learning more about the question “how much does injection molding cost,” please get in touch with us right away so that we can provide you with experienced guidance that is tailored to your specific requirements.
Questions of a General Nature:
Question 1: Is the cost of injection molding high?
The amount of money that will be spent on injection molding is set by the level of complexity and the volume of manufacturing. In situations where a large number of components with precise dimensional accuracy are required, it is quite cost-effective despite the fact that it is expensive.
What is the price range for a plastic injection mold of a certain size?
Injection mold prices can range anywhere from $300 to $3000, depending on the type of material, the degree of complexity of the mold, the volume of the product that needs to be produced, and the design of the part.
The third question is: Is it possible to use injection molding with materials other than plastic?
In point of fact, injection molding is a versatile procedure that can be utilized in a broad variety of industries due to the fact that it can also be utilized with rubbers and metals.
