Injection molding is a cornerstone of modern manufacturing, enabling the mass production of plastic parts with precision and efficiency. However, even with advanced technology and skilled operators, defects in injection molding parts are a common challenge. These defects not only compromise the aesthetic appeal of the product but can also impact its functionality, leading to increased costs and delays. Whether it’s surface imperfections, dimensional inaccuracies, or more severe issues, understanding and addressing these problems is crucial for achieving high-quality output One of the most frequent challenges manufacturers face is injection molding surface defects, such as flow marks, sink marks, or weld lines. These visible imperfections can often be traced back to process settings, tooling design, or material inconsistencies. Troubleshooting these issues requires a systematic approach that identifies the root causes and implements corrective actions.
Another significant area of concern is common injection molding defects, which include short shots, warping, and voids. These issues can result from improper material selection, poor mold design, or incorrect process parameters. By adopting effective troubleshooting techniques, manufacturers can mitigate these problems and ensure consistent quality in their production lines.

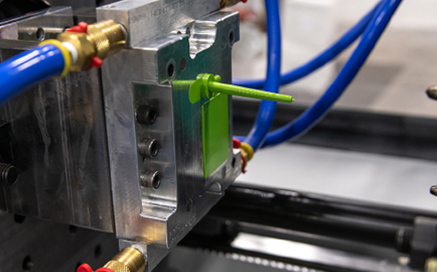

Understanding Common Injection Molding Defects: Causes and Prevention
Injection molding is a critical process in manufacturing, allowing for the mass production of complex plastic parts with high precision. However, it’s not without its challenges, and defects in the final product are common. Understanding these defects, their causes, and how to prevent them is essential for ensuring quality and efficiency in production.
Common Injection Molding Defects
- Flow Lines
Flow lines appear as streaks or patterns on the surface of the molded part, often in a different color than the surrounding material. They occur due to variations in the flow of molten plastic as it fills the mold.
Causes:
- Slow injection speed or pressure.
- Low material temperature.
- Complex mold design with sharp corners or abrupt changes in wall thickness.
Prevention:
- Optimize injection speed and pressure to ensure even flow.
- Increase the temperature of the material and mold.
- Design molds with smoother transitions and avoid sharp corners.
- Sink Marks
Sink marks are depressions on the surface of the molded part caused by uneven cooling and shrinkage.
Causes:
- Inadequate packing pressure during the holding phase.
- Uneven wall thickness in the mold design.
- Low cooling rate.
Prevention:
- Increase packing pressure and extend the holding time.
- Maintain consistent wall thickness in the mold design.
- Use cooling systems that ensure uniform temperature distribution.
- Short Shots
Short shots occur when the molten plastic does not completely fill the mold, leaving incomplete parts.
Causes:
- Insufficient injection pressure.
- Clogged or narrow gates and runners.
- Inadequate material quantity.
Prevention:
- Increase injection pressure and speed.
- Ensure gates and runners are properly sized and free from blockages.
- Verify the material feed is sufficient.
- Warping
Warping refers to the distortion or bending of the molded part, making it lose its intended shape.
Causes:
- Uneven cooling rates in the mold.
- Excessive injection pressure.
- Poor material choice with high shrinkage rates.
Prevention:
- Optimize mold cooling systems for even temperature distribution.
- Use materials with lower shrinkage characteristics.
- Adjust injection pressure and cooling time.
- Flash
Flash occurs when molten plastic escapes from the mold cavity and solidifies, creating unwanted material around the part.
Causes:
- Insufficient clamping force.
- Worn or damaged mold.
- Excessive injection pressure.
Prevention:
- Increase clamping force to hold the mold securely.
- Inspect and maintain molds regularly.
- Optimize injection pressure to prevent overfilling.
Troubleshooting Injection Molding Challenges: Effective Solutions for Smooth Production
Injection molding is a dynamic process influenced by various factors, including material properties, machine settings, and mold design. When defects arise, systematic troubleshooting can identify root causes and implement effective solutions.
Step 1: Analyze the Defect
Carefully examine the defective part to identify the issue. Understanding the defect’s characteristics helps in pinpointing the underlying cause. For instance:
- A short shot may indicate inadequate material flow or pressure.
- Warping might point to uneven cooling or mold design issues.
Step 2: Optimize Machine Settings
Machine settings play a significant role in defect prevention. Adjust the following parameters:
- Injection Pressure and Speed:
Too Low: Can result in short shots and incomplete fills.
Too High: Can cause flash and warping.
Solution: Gradually adjust injection pressure and speed to balance material flow and part formation.
- Material Temperature:
Too Low: Leads to poor flow, causing flow lines or short shots.
Too High: May degrade the material, leading to discoloration or burn marks.
Solution: Set the material temperature within the recommended range for the plastic type being used.
- Cooling Time and Temperature:
Too Short: Increases the risk of warping or sink marks.
Too Long: Can slow production and increase costs.
Solution: Use simulation software to determine optimal cooling time and uniform temperature distribution.
Step 3: Inspect Mold Design
The mold design significantly impacts the quality of the final product. Consider the following:
- Gate and Runner Design:
Ensure gates and runners are properly sized to allow sufficient material flow.
Position gates strategically to reduce pressure drop and improve fill uniformity.
- Wall Thickness:
Maintain consistent wall thickness to prevent warping and sink marks.
Avoid sharp corners and abrupt changes in thickness.
- Venting:
Incorporate vents to allow trapped air to escape during injection.
Clean and maintain vents regularly to prevent clogging.
Step 4: Material Selection and Handling
The choice and preparation of raw materials are crucial in minimizing defects.
- Choose the Right Material:
Select a plastic material with properties suited to the product’s application.
Consider factors like shrinkage rates, strength, and heat resistance.
- Proper Material Handling:
Dry materials thoroughly before use to prevent moisture-related defects like bubbles or splay marks.
Store materials in a controlled environment to avoid contamination.
Step 5: Implement Preventive Maintenance
Regular maintenance of equipment and molds is vital for consistent production quality.
- Mold Maintenance:
Inspect molds for wear and tear.
Repair or replace damaged components promptly.
- Machine Calibration:
Calibrate machines regularly to ensure consistent performance.
Check for leaks, worn seals, and other mechanical issues.
Step 6: Train Operators
Proper training equips operators with the skills to identify and address defects quickly. Conduct regular workshops on:
- Machine operation and troubleshooting techniques.
- Identifying common defects and their causes.
- Implementing quality control measures during production.
Advanced Troubleshooting Tools
Utilize modern technology to enhance troubleshooting efforts:
- Simulation Software:
Use software to simulate material flow, cooling, and shrinkage.
Identify potential defects before production begins.
- Automated Monitoring Systems:
Employ sensors to monitor pressure, temperature, and material flow in real-time.
Receive alerts for deviations from optimal settings.
- Data Analytics:
Analyze production data to identify recurring issues and trends.
Use insights to refine processes and improve efficiency.
Injection Molding Surface Defects and Their Impact on Production
Injection molding surface defects are a significant concern for manufacturers, as they directly affect the appearance, functionality, and overall quality of the final product. These defects not only compromise the aesthetic value of the product but can also lead to structural weaknesses, making the product unsuitable for its intended application. Surface defects are a major contributor to production inefficiencies, often leading to rejections, increased costs, and wasted materials. For manufacturers, tackling these defects is not just a matter of maintaining quality but also optimizing production workflows and minimizing resource wastage.
Surface defects are typically caused by variations in the molding process, inconsistencies in the raw materials, or design flaws in the mold itself. Addressing these challenges requires manufacturers to adopt a holistic approach that includes thorough analysis, process optimization, and regular equipment maintenance. By identifying and mitigating surface defects at the earliest stage of production, manufacturers can achieve smoother workflows, higher operational efficiency, and improved product quality, ultimately ensuring customer satisfaction and loyalty.
Common Types of Injection Molding Surface Defects
Surface defects in injection molding take various forms, each with its own set of causes and solutions. These defects can range from purely aesthetic issues to critical functional flaws that affect the usability of the product.
Flow Lines: Flow lines are streaks or patterns that appear on the surface of molded parts. They often arise from uneven cooling or inconsistent material flow during the injection process. While they may seem like minor cosmetic issues, flow lines can be a sign of deeper problems in the molding process, such as suboptimal injection speed or pressure, or sharp transitions in the mold design.
Burn Marks: Burn marks are discolored areas on the surface of the part, usually black or brown, caused by trapped air or gas overheating during the injection cycle. These marks not only degrade the visual appeal of the part but may also weaken its structural integrity. Burn marks are often indicative of inadequate venting in the mold or excessively high injection speeds.
Weld Lines: Weld lines occur where two separate flow fronts meet but fail to fuse properly. These lines are often weak points in the molded part and can lead to reduced mechanical strength. They are particularly problematic in parts that require high durability or are subject to mechanical stress. Poor material flow or improperly placed gates can exacerbate this defect.
Sink Marks: Sink marks are depressions or indentations on the surface of the molded part, typically caused by uneven cooling or insufficient packing pressure. While they may not always affect the part’s functionality, sink marks can compromise the visual appeal and dimensional accuracy of the product.
Warpage: Warping or distortion occurs when the molded part cools unevenly, causing it to bend or twist out of shape. This defect is particularly common in parts with varying wall thicknesses or when the cooling process is not uniform across the mold.
Root Causes of Surface Defects in Injection Molding
Understanding the root causes of surface defects is the first step in implementing effective solutions. These defects often stem from a combination of factors, including processing errors, material properties, and mold design.
Processing Parameters: Variations in parameters such as injection speed, pressure, and cooling time are among the most common causes of surface defects. For example, low injection pressure can lead to incomplete filling of the mold, resulting in short shots or flow lines. Conversely, excessive pressure may cause flashing or burn marks. Inconsistent cooling times can also create sink marks or warping.
Material Properties: The choice of material plays a significant role in defect formation. Some plastics are more prone to shrinkage or require specific temperature ranges for optimal performance. Inadequate material preparation, such as failing to dry plastics before overmolding, can introduce moisture-related defects like bubbles or splay marks.
Mold Design: A poorly designed mold is a frequent source of defects. Features such as sharp corners, abrupt changes in wall thickness, and inadequate venting can lead to a variety of issues, including weld lines, burn marks, and warping. A lack of uniform cooling channels within the mold further exacerbates these problems.
Corrective Measures for Eliminating Surface Defects
Corrective measures focus on addressing the specific factors that contribute to surface defects. A comprehensive approach involves optimizing processing parameters, refining mold design, and ensuring proper material handling.
Optimizing Injection Parameters: Adjusting injection speed, pressure, and material temperature is essential for reducing surface defects. For example, increasing injection speed can eliminate flow lines, while optimizing cooling time can prevent sink marks and warping. Regular calibration of injection molding machines ensures consistent performance and minimizes variations in production.
Improving Mold Design: Mold design modifications can significantly reduce surface defects. Adding vents to the mold allows trapped air to escape, preventing burn marks. Redesigning gates and runners for smoother material flow minimizes weld lines and ensures uniform filling of the mold. Ensuring consistent wall thickness throughout the part reduces stress concentrations and improves cooling uniformity.
Material Handling and Selection: Proper material handling, such as drying plastics to remove moisture, helps prevent defects like bubbles and splay marks. Selecting materials with properties that align with the product’s requirements, such as low shrinkage rates and high thermal stability, further reduces the likelihood of defects.
Regular Maintenance: Routine maintenance of molds and machines is critical for consistent quality. Worn or damaged molds should be repaired or replaced promptly to avoid defects caused by misalignment or poor sealing. Similarly, regular cleaning of molds and cooling channels ensures optimal performance.
Preventing Defects in Injection Molding Parts Through Process Optimization
Preventing defects requires a proactive approach to process optimization that encompasses every stage of the injection molding cycle. This includes pre-production planning, real-time monitoring, and post-production analysis to identify and address potential issues before they escalate.
Pre-Production Planning: Conducting thorough simulations and tests before production begins helps identify potential defects and refine process parameters. Simulation software can model material flow, cooling, and shrinkage to predict how the part will behave during molding. These insights allow manufacturers to make adjustments that prevent defects from occurring.
Real-Time Monitoring: Advanced monitoring systems equipped with sensors track key variables such as pressure, temperature, and material flow during production. Deviations from optimal settings can trigger alerts, enabling operators to make immediate adjustments. This real-time feedback loop ensures that defects are detected and corrected early in the process.
Post-Production Analysis: Regular inspection of finished parts provides valuable insights into the effectiveness of the production process. Dimensional checks, visual inspections, and stress tests help identify recurring defects and their root causes. By analyzing this data, manufacturers can implement targeted improvements that enhance overall product quality.
Operator Training: Skilled operators are essential for maintaining high standards in injection molding. Providing regular training on best practices, defect identification, and troubleshooting techniques equips operators with the knowledge needed to prevent and address defects effectively.
Collaboration with Designers: Working closely with product designers ensures that the part design is optimized for the injection molding process. Early collaboration allows potential issues, such as sharp corners or uneven wall thickness, to be addressed before the mold is created.
The Importance of Material Selection in Defect Prevention
The choice of raw materials is critical in preventing injection molding defects. Different plastics have unique properties that influence their behavior during the molding process. For example, some materials are more susceptible to shrinkage, which can lead to warping or dimensional inaccuracies. Selecting materials with appropriate flow characteristics and thermal stability ensures better compatibility with the desired application. Proper material handling, such as drying plastics to remove moisture and blending them for uniformity, further reduces the risk of defects. By prioritizing material selection and preparation, manufacturers can enhance product quality and consistency.
The Role of Mold Design in Quality Assurance
Mold design is a fundamental factor in ensuring the quality of injection-molded parts. Poorly designed molds can introduce numerous defects, including flash, weld lines, and flow marks. To minimize these issues, molds should be engineered for uniform material flow and consistent cooling. Features such as rounded edges, draft angles, and uniform wall thickness reduce stress concentrations and promote structural integrity. Adequate venting is essential for preventing burn marks caused by trapped air. Collaborating with skilled mold designers during the development phase helps identify potential design flaws and implement solutions that enhance product quality.
Leveraging Quality Control Measures to Reduce Defects
Implementing robust quality control measures is vital for minimizing injection molding defects. Real-time monitoring systems equipped with sensors can track critical parameters such as material flow, temperature, and pressure during production. Any deviations from optimal settings trigger alerts, allowing operators to make immediate adjustments. Visual inspections and dimensional checks ensure that defects are identified early and corrected promptly. Establishing a structured quality assurance process, including regular audits and testing, further enhances defect prevention and builds confidence in the final product.
Advanced Technologies for Defect Detection and Prevention
The adoption of advanced technologies has revolutionized the injection molding industry, enabling manufacturers to detect and prevent defects more effectively. Simulation software allows engineers to model the injection molding process, identifying potential issues such as uneven cooling or poor material flow before production begins. Automated systems equipped with real-time data analytics provide insights into process performance and defect trends. These tools empower manufacturers to make data-driven decisions and implement improvements that enhance overall efficiency and quality.
Continuous Improvement as a Strategy for Quality Enhancement
Continuous improvement is a cornerstone of successful injection molding operations. By regularly reviewing production processes and gathering feedback from operators and customers, manufacturers can identify areas for enhancement. Implementing changes based on insights gained from defect analysis and quality control audits ensures ongoing progress. Training programs that keep operators up to date on the latest best practices and technologies further strengthen defect prevention efforts. A culture of continuous improvement fosters innovation, reduces waste, and maintains high standards of quality in injection-molded products.
Conclusion
Injection molding is a complex process that requires careful attention to detail to achieve high-quality results. Surface defects such as flow lines, burn marks, and weld lines pose significant challenges, but they can be effectively addressed through a combination of process optimization, material selection, and mold design improvements. By adopting advanced technologies, implementing robust quality control measures, and fostering a culture of continuous improvement, manufacturers can minimize defects and deliver superior products. With a proactive approach to defect prevention, the injection molding process becomes a reliable and efficient method for producing plastic parts that meet the demands of modern industries.
