Die casting is a high-precision metal manufacturing process that involves injecting molten metal into a mold under high pressure. This technique is widely used across various industries, including automotive, aerospace, electronics, and industrial equipment, due to its ability to produce complex and durable components with excellent surface finishes. The efficiency and quality of die casting heavily depend on the performance of different die casting machine parts, each playing a critical role in ensuring smooth operation, accuracy, and consistency. Understanding the essential die casting machine parts name and their functions is crucial for manufacturers and engineers seeking to optimize the casting process. Furthermore, the use of aluminium die cast machined parts has gained immense popularity due to the material’s lightweight nature, corrosion resistance, and strength.

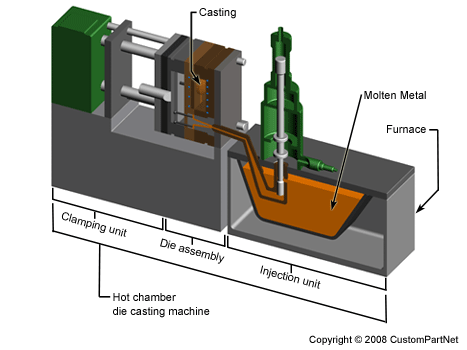

Key die casting machine parts and their functions
Die casting machines consist of multiple components that work together to transform molten metal into finished parts. Below are some of the most important die casting machine parts and their specific functions.
Injection system
The injection system is responsible for injecting molten metal into the mold cavity with high speed and pressure. This system ensures that the metal fills every intricate detail of the mold.
- Shot sleeve – A tube-like component where molten metal is poured before injection.
- Plunger tip and rod – Pushes the molten metal into the mold cavity.
- Nozzle – Directs the molten metal flow into the mold cavity.
- Shot cylinder – Controls the movement of the plunger to maintain consistency in metal injection.
Clamping unit
The clamping unit holds the die in place during the injection and solidification process, ensuring accurate casting formation.
- Fixed platen – Supports the fixed half of the mold.
- Movable platen – Supports the ejector half of the mold and moves back and forth.
- Toggle mechanism or hydraulic clamps – Applies force to keep the mold securely closed during casting.
Die or mold
The die, also known as the mold, is the most critical component in the die casting process. It determines the final shape, design, and quality of the finished product.
- Cover die (fixed half) – The stationary part of the die attached to the fixed platen.
- Ejector die (movable half) – The moving part that contains ejector pins to push out the solidified casting.
- Cooling channels – Circulates cooling fluids to regulate the mold temperature.
- Vents and overflow channels – Allow trapped air and excess metal to escape, preventing defects.
Hydraulic system
The hydraulic system powers various functions of the die casting machine, including injection, clamping, and ejection.
- Hydraulic pump – Provides the necessary pressure to operate machine functions.
- Control valves – Regulate hydraulic fluid flow for controlled movements.
- Actuators and cylinders – Convert hydraulic pressure into mechanical motion for injection and clamping.
Melting and holding furnace
Molten metal preparation is a crucial part of the die casting process. The furnace ensures that the metal remains at the correct temperature before injection.
- Melting furnace – Heats the metal until it reaches its molten state.
- Holding furnace – Maintains the molten metal at a stable temperature before injection.
- Temperature control system – Ensures accurate heat levels to prevent casting defects.
Importance of knowing die casting machine parts name
Familiarity with different die casting machine parts name helps engineers, technicians, and manufacturers maintain efficiency in production. Knowing the function and maintenance requirements of each part improves operational efficiency and minimizes machine downtime. Some of the most commonly used die casting machine parts names include:
- Shot sleeve – Directs molten metal into the die cavity.
- Plunger – Pushes metal into the mold.
- Die platen – Holds and supports the mold.
- Toggle mechanism – Generates the force needed for clamping.
- Ejector pins – Release the solidified part from the mold.
- Hydraulic pump – Powers the machine’s hydraulic functions.
- Nozzle – Controls the flow of molten metal.
- Cooling system – Prevents overheating and maintains temperature stability.
- Control panel – Operates and monitors machine settings.
Understanding these parts ensures better troubleshooting, proper maintenance, and more efficient production.
The role of aluminium die cast machined parts in modern manufacturing
Aluminium die casting has become a preferred choice in various industries due to its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. The production of aluminium die cast machined parts involves using high-precision machining processes to refine the raw cast components into finished products with tight tolerances.
Industries such as automotive, aerospace, and electronics rely on aluminium die cast machined parts for their durability, lightweight properties, and ability to withstand high temperatures. Some common applications of aluminium die cast machined parts include:
- Engine components such as transmission housings and cylinder heads
- Structural components in aerospace applications
- Electronic housings and heat sinks
- Medical equipment and precision instruments
The machining process refines the cast parts to achieve the required dimensional accuracy, surface finish, and performance characteristics. With advancements in CNC machining, aluminium die cast machined parts can now be produced with extreme precision and customization.
Advantages of aluminium die cast machined parts
Aluminium die cast machined parts offer several advantages that make them suitable for modern industrial applications. Some key benefits include:
- High precision and dimensional accuracy, reducing the need for secondary finishing
- Excellent strength-to-weight ratio, making them ideal for applications requiring lightweight materials
- Superior corrosion resistance, which extends the lifespan of components
- Cost-effective production, especially for high-volume manufacturing
- High thermal and electrical conductivity, making them suitable for electronic and automotive applications
Challenges in die casting machine parts and solutions
Despite the advantages, there are challenges associated with die casting machine parts that can affect productivity and product quality. Some common challenges include:
- Porosity in the casting, which can weaken the final product
- High tooling costs, which may not be economical for low-volume production
- Wear and tear of machine components, leading to maintenance issues
- Difficulty in machining certain alloys due to their hardness
To overcome these challenges, manufacturers are investing in advanced casting technologies, improved mold designs, and high-quality raw materials. Automation and AI-based monitoring systems are also being integrated into die casting machines to enhance efficiency, minimize defects, and reduce production costs.
Future trends in die casting machine parts and aluminium die cast machined parts
The future of die casting machine parts and aluminium die cast machined parts is being shaped by advancements in automation, sustainability, and material science. Some of the notable trends include:
- Increased use of automation and robotics to improve precision and reduce manual labor
- Adoption of eco-friendly die casting methods, such as vacuum-assisted casting and reduced waste processes
- Enhanced alloy compositions to improve strength, corrosion resistance, and thermal properties
- Integration of real-time monitoring systems to detect defects and optimize machine performance
As industries continue to demand high-performance and lightweight materials, the role of die casting machine parts and aluminium die cast machined parts will only become more significant. Manufacturers who embrace technological advancements and efficient production techniques will remain at the forefront of innovation and competitiveness. Die casting machine parts are essential for the success of modern metal casting operations. Understanding the various die casting machine parts name and their functions helps optimize production efficiency and product quality. Additionally, aluminium die cast machined parts have proven to be valuable across multiple industries due to their lightweight, corrosion resistance, and high precision.
As advancements in die casting technology continue, the industry will witness greater efficiency, sustainability, and innovation in the production of high-quality metal components. Businesses that invest in modern die casting solutions will benefit from increased productivity, cost savings, and superior product performance.
Advancements in Die Casting Machine Technology
The die casting industry has seen continuous technological advancements, making the manufacturing process more efficient, precise, and cost-effective. As automation, computer-aided design (CAD), and real-time monitoring systems integrate into modern production lines, manufacturers can achieve higher quality and consistency in die casting machine parts. One of the most significant advancements in die casting technology is the use of high-pressure die casting (HPDC) and vacuum-assisted die casting, which improve the density and structural integrity of components. HPDC allows molten metal to be injected into molds at extremely high speeds, minimizing air entrapment and improving surface finish. Vacuum-assisted die casting, on the other hand, removes gases from the mold cavity, reducing porosity and enhancing the mechanical properties of the final product.
Another key development is the adoption of semi-solid and squeeze casting processes. These methods help improve part quality by reducing defects such as shrinkage and cracks. With precise temperature control, semi-solid casting ensures better flow characteristics of molten metal, making it ideal for producing complex parts with tight tolerances. Additionally, artificial intelligence (AI) and machine learning are being implemented to optimize die casting machine performance. AI-powered monitoring systems analyze real-time data to detect potential defects, adjust process parameters, and improve overall efficiency. This leads to fewer production errors, reduced material waste, and enhanced process control.
The Growing Demand for Aluminium Die Cast Machined Parts
Aluminium die cast machined parts have gained widespread adoption due to their excellent strength-to-weight ratio, corrosion resistance, and conductivity. As industries continue to prioritize lightweight and high-performance materials, aluminium die casting remains a preferred choice for various applications. One of the most prominent industries relying on aluminium die cast machined parts is the automotive sector. With the shift toward electric vehicles (EVs) and fuel efficiency improvements, automakers are using aluminium components to reduce vehicle weight while maintaining durability. Aluminium die cast parts such as engine blocks, transmission housings, and suspension components contribute to better performance and lower emissions. In the aerospace industry, aluminium die casting provides lightweight yet high-strength components used in aircraft frames, brackets, and structural parts. The ability to produce complex geometries with precision makes die casting ideal for aerospace applications where weight reduction is critical.
The electronics industry also benefits significantly from aluminium die cast machined parts, particularly for heat sinks, enclosures, and casings. Aluminium’s high thermal conductivity makes it an excellent material for dissipating heat in electronic devices, ensuring better performance and longevity. Furthermore, aluminium die cast machined parts are extensively used in medical equipment, industrial machinery, and robotics, where precision, strength, and corrosion resistance are essential. With advancements in CNC machining, manufacturers can produce intricate aluminium components with superior accuracy and surface finish.
Improving the Performance and Durability of Die Casting Machine Parts
To ensure the longevity and efficiency of die casting machine parts, regular maintenance and the use of high-quality materials are essential. Wear and tear on critical components such as plungers, shot sleeves, and ejector pins can lead to defects in the final cast parts. Manufacturers are now utilizing coated and heat-treated materials to enhance the durability of these machine parts. Special coatings like titanium nitride (TiN) and chromium nitride (CrN) increase wear resistance, extending the lifespan of critical die casting machine components. Additionally, advanced lubricants and cooling techniques help reduce friction and thermal stress, preventing premature failure.
Another key factor in improving performance is die temperature control. Maintaining an optimal mold temperature reduces thermal cycling stress, preventing cracking and prolonging die life. Many modern die casting machines now feature integrated cooling channels and thermal sensors that regulate temperature in real time, ensuring consistent casting quality. Additionally, robotic automation is being increasingly adopted to handle tasks such as die spraying, part extraction, and trimming. Automated systems improve precision, reduce human errors, and enhance workplace safety, making the die casting process more efficient and reliable.
Sustainability and Environmental Considerations in Die Casting
Sustainability has become a key focus in the die casting industry, with manufacturers aiming to reduce energy consumption, waste, and environmental impact. Aluminium die casting is inherently more sustainable compared to other materials due to aluminium’s high recyclability. Recycled aluminium retains the same mechanical properties as virgin aluminium, making it a cost-effective and environmentally friendly choice. One of the major challenges in traditional die casting is the generation of metal scrap and excess material. Modern die casting technologies, such as near-net-shape casting, minimize material waste by producing parts closer to their final dimensions, reducing the need for extensive machining.
Furthermore, the use of energy-efficient melting and holding furnaces helps lower the carbon footprint of die casting operations. Induction furnaces and regenerative burner systems significantly reduce energy consumption compared to conventional gas-fired furnaces. Manufacturers are also exploring water-based die lubricants as an alternative to conventional oil-based lubricants. Water-based lubricants are biodegradable and generate fewer harmful emissions, improving workplace safety and environmental sustainability.
Future Trends in Die Casting and Aluminium Die Cast Machined Parts
As technology continues to evolve, the future of die casting and aluminium die cast machined parts is expected to be shaped by the following trends:
- 3D Printing and Additive Manufacturing in Die Casting
- The integration of 3D printing for rapid prototyping and tooling development is transforming the industry.
- Additive manufacturing allows for faster production of complex mold designs and reduces lead times.
- Lightweighting Strategies for Automotive and Aerospace Applications
- The demand for lighter and stronger aluminium alloys is increasing as manufacturers seek to improve fuel efficiency and performance.
- Hybrid materials and composite die casting techniques are being explored to enhance material properties.
- Advancements in High-Performance Alloys
- New aluminium alloys with improved mechanical properties, heat resistance, and corrosion resistance are being developed for specialized applications.
- Increased Use of Smart Manufacturing and Industry 4.0
- Real-time data analytics, machine learning, and IoT sensors are optimizing die casting processes, leading to better quality control and production efficiency.
- Development of Eco-Friendly and Sustainable Casting Practices
- The industry is shifting toward zero-waste manufacturing and energy-efficient production to align with global sustainability goals.
Conclusion
Die casting machine parts play a crucial role in the precision, efficiency, and reliability of modern manufacturing. Understanding die casting machine parts name and their functions is essential for optimizing production processes and maintaining high-quality standards. Aluminium die casting machined parts continue to be a preferred choice across multiple industries due to their lightweight properties, corrosion resistance, and high precision. As the industry embraces automation, AI-driven quality control, and sustainable manufacturing, the future of die casting will witness even greater efficiency, innovation, and environmental responsibility. With ongoing advancements in materials, process control, and smart manufacturing, die casting technology will continue to evolve, meeting the growing demands of modern engineering and industrial applications. Businesses that invest in the latest die casting innovations will benefit from improved productivity, reduced costs, and superior product quality, ensuring long-term success in a competitive global market.
